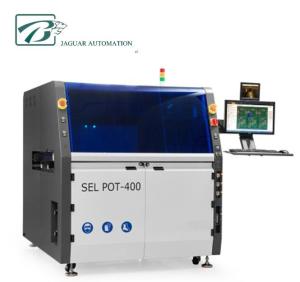

JAGUAR Selective Wave Soldering (SEL POT-400)
Advantages:
(1) Integrated full-functional model, the whole motion platform integrated spray and welding, compact space.
(2) PCB plate fixed, spray and welding platform moving.
(3) High welding quality, greatly improve the pass rate of welding.
(4) Modular design of SMEMA online transportation, support customers for flexible line formation.
(5) Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,n2 temperature etc, best trace-ability and easy to get repeat soldering quality.
Specification:
| Machine name | SELPOT-400 |
| General |
| General power | 10kw |
| Consumption power | 2--4kw |
| Power supply | Single Phase 220V 50HZ |
| Required air source | 3-5 Bars |
| Required air flow | 8-12L/min |
| Required N2 pressure | 3-4 Bars |
| Required N2 flow | >2m³/hours |
| Required N2 purity | 99.998% |
| Required exhausting | 500---800cbm/h |
| Carrier or PCB |
| Max carrier size | L400 X W400MM Remark:W is machine’s wide direction |
| Pcb edge | Above 3mm |
| Controlling & Conveyor |
| Controlling | PLC + controller |
| Conveyor width | 100-400MM |
| Conveyor type | Roller conveyor |
| Conveyor thick | 1----4mm |
| Conveyor direction | Left to right |
| Conveyor up clearance | 50MM |
| Conveyor bottom clearance | 30MM |
| Conveyor load | Less 10kg |
| Conveyor rail | Aluminum rail |
| Conveyor height | 900+/-30mm |
| Motion table(fluxing) |
| Motion axis | X, Y |
| Motion control | Closed loop servo control |
| Position accuracy | + / - 0.05 mm |
| Chassis | Metal welding |
| Flux management |
| Flux nozzle | Jet valve |
| Nozzle durability | Stainless steel |
| Flux tank capacity | 3L |
| Flux tank | Pressure tank |
| Alcohol tank capacity | 1L |
| Alcohol tank | Pressure tank |
| Preheat |
| Preheat method | Upper & bottom IR heating |
| Heater’s power | 6kw |
| Temperature range | 25--240c degree |
| Motion table(soldering) |
| Motion axis | X, Y, Z |
| Motion control | Closed loop servo control |
| Motion motor | Panasonic servo motor |
| Ball screw | Hiwin |
| Position accuracy | + / - 0.05 mm |
| Chassis | Metal welding |
| Solder pot |
| Standard pot number | 1 |
| Solder pot capacity | 15 kg /solder pot |
| Solder temperature range | PID |
| Melting time | 20--30 Minutes |
| Max solder temperature | 350 ℃ |
| Solder heater | 1.2kw |
| Solder nozzle |
| Nozzle dim | Customized |
| Material | High carbon alloy |
| Standard equipped nozzle | Standard configure 5pcs/set(Inner diameter: 3mm, 4mm, 5mm, 6mm,8mm ) |
| N2 management |
| N2 heater | Standard equipped |
| PID control N2 temp range | 0 - 350 ℃ |
| N2 consumption | 1-2m³/h/pot |
FAQ:
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
